Reference of Baling-Hengyi Petrochemical's
Caprolactam Project

2011, Dalu offered totally 561 sets of the pumps and steam turbines with related systems, including 93 sets of the centrifugal pump, 20 sets of magnetic drive pump, 2 sets of steam turbines for cyclohexanone device, 78 sets of the centrifugal pump for Ammoximation device, 88 sets of the centrifugal pump for Caprolactam device, 42 sets of the centrifugal pump for H202 device, 280 sets of the magnetic drive pump for raw material & tank area, 45 sets of the centrifugal pump for environment protection device, 49 sets of the centrifugal pump, 1 set of steam turbine for power station device, 7 sets of the big capacity circulation pump, 3 sets of steam turbine for power station device.

Baling-Hengyi Petrochemical's Caprolactam Project Panorama


Radial flow steam turbine (High speed, high efficiency, various condition, energy saving)

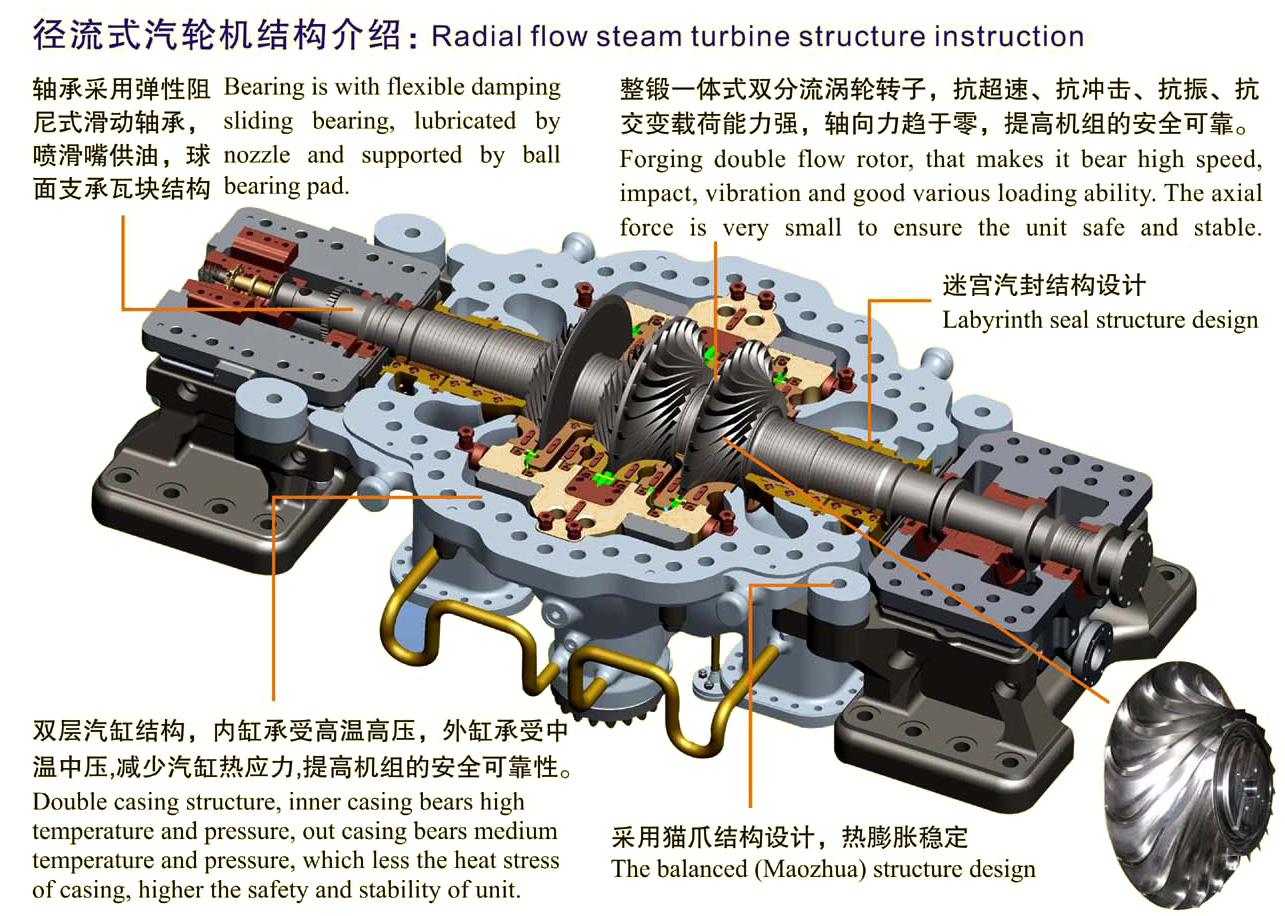

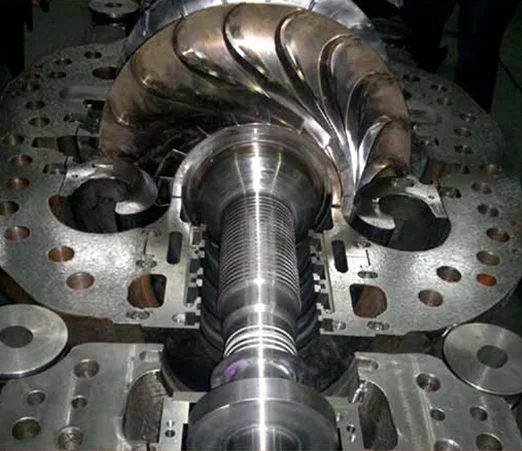

The enthalpy of radial flow steam turbine is one time higher than axial flow steam turbine, then there are only 1~3 stage. The rotor is with long and narrow blade. The unit is designed with high speed, then output power 15%~50% higher than axial flow steam turbine. And if power is same, the efficiency can be up to 62%~77%, normally only 30%~60%, and maybe 84%. The unit features small volume, tight structure, high efficiency, easy maintenance. It is used well to drive high speed equipment or generator. Since 2006, we have got 3 invention patents and utility model patent.

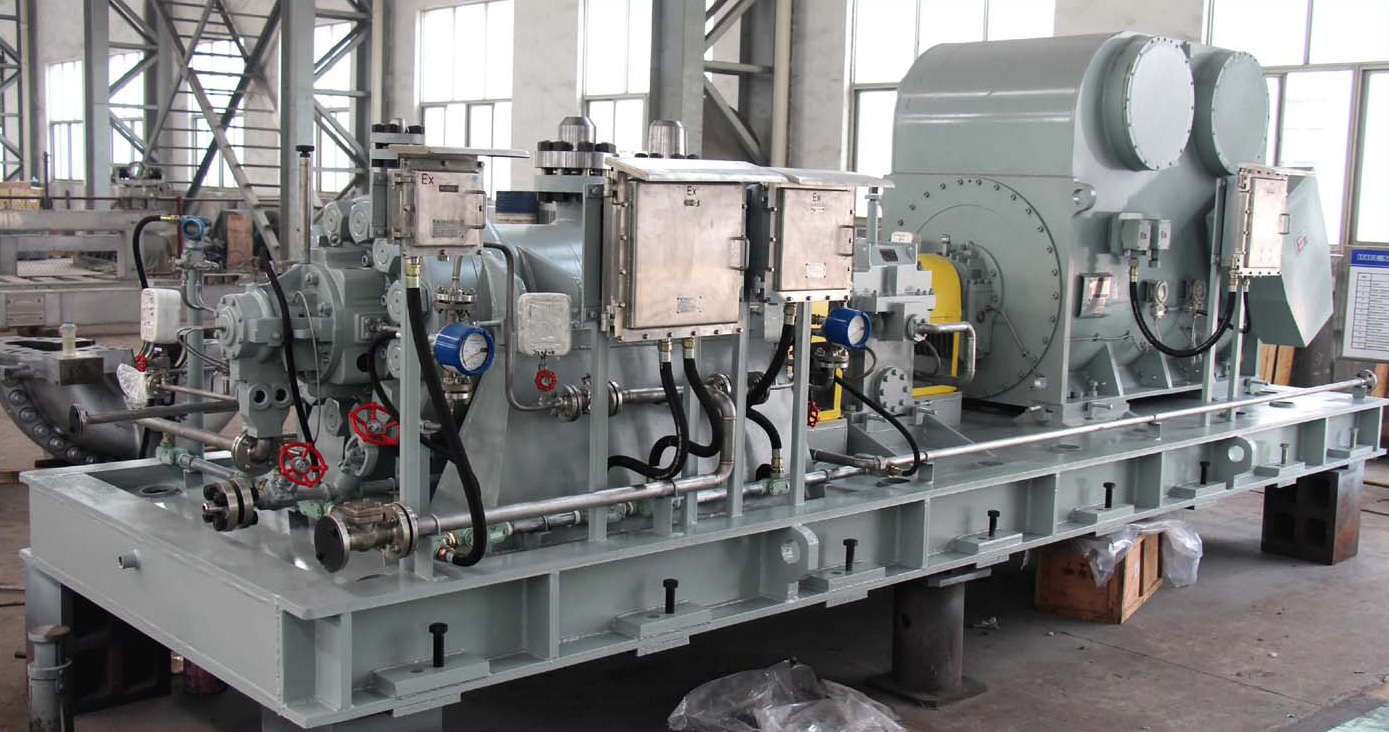

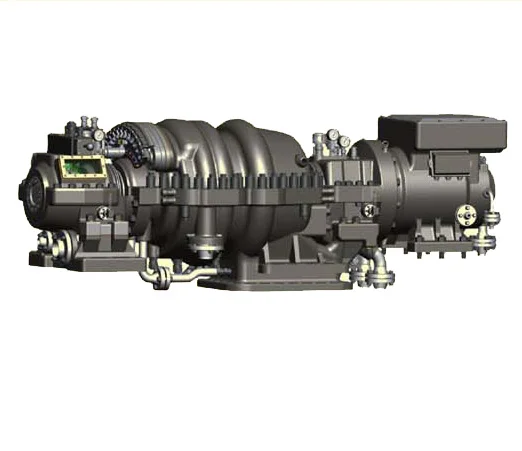

Radial flow steam turbine Assembly

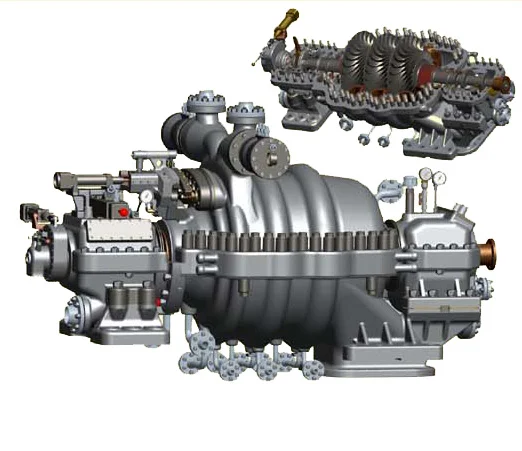

Radial flow steam turbine Assembly

10300r/min  Radial flow steam turbine

10300r/min
Radial flow steam turbine

Hydraulic turbine

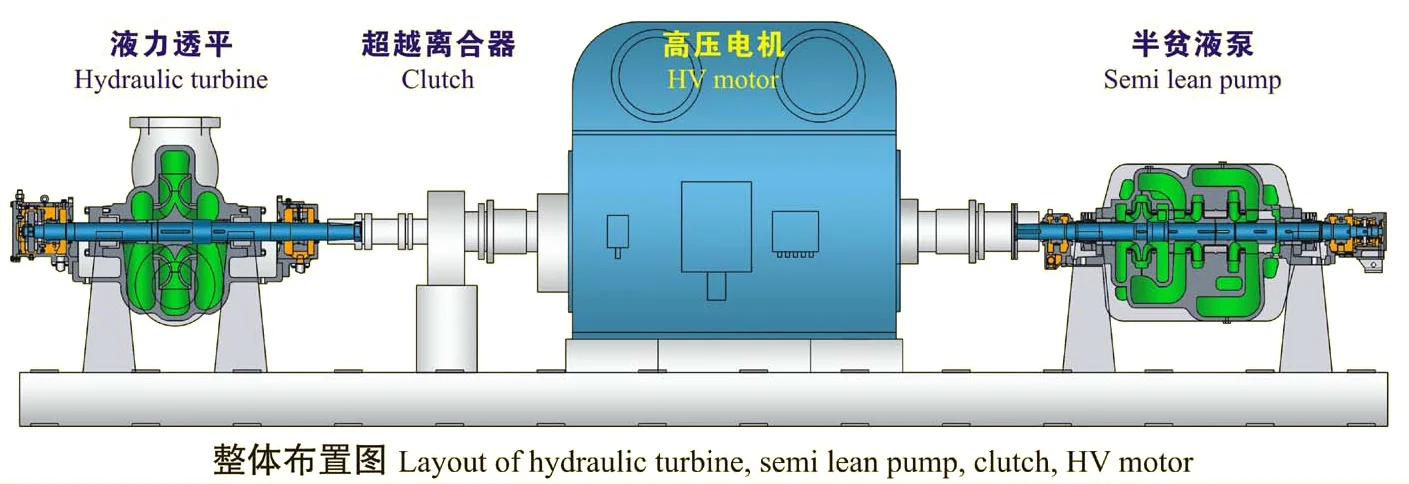

Hydraulic turbine can convert the energy in fluid to mechanical drive energy. In petrochemical device, there are much potential energy when the high pressure liquid transferred to low pressure device, which can be recovered by hydraulic turbine. It is used extensively in high pressure liquid to recover the energy.

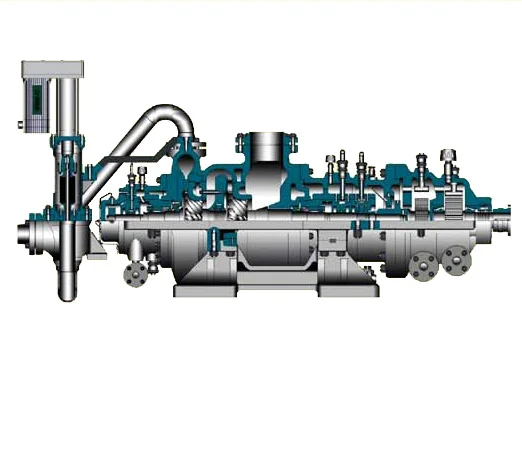

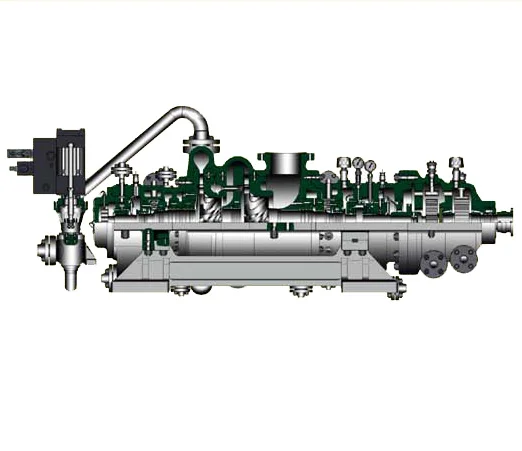

HTDB Double-Casing Self-balance High- temperature High-pressure Centrifugal Pump

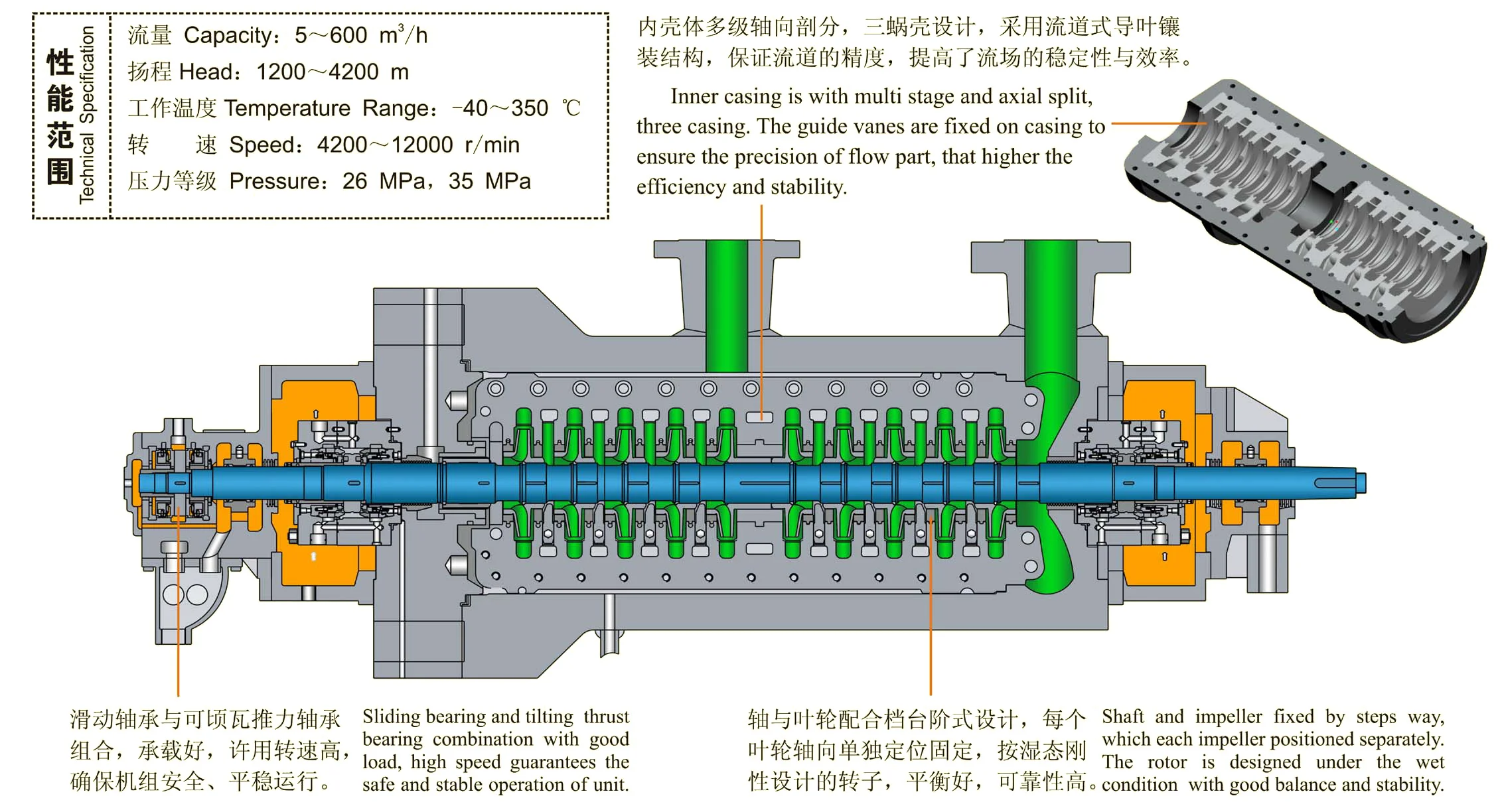

HTDB Double-Casing Self-balance High-temperature High-pressure Centrifugal Pump, designed according to API610 standard, is a kind of efficient energy-saver Self-balance high-temperature high-pressure centrifugal pump, whose outer casing adopts the cylinder structure and the radial-split design and inner casing uses the axially horizontal split Structure. The pump is characteristic of long operating life, high reliability, easy maintenance and low maintenance cost. The pump is mainly used in pumping the high-pressure liquid ammonia in the chemical fertilizer plant and the high temperature, neutral or corrosive, and clean liquid in the fields of boiler feed water, hydrogenation feed, oilfield high-pressure water injection, petrochemical process and so on.

HTDB Double-Casing Self-balance High- temperature High-pressure Centrifugal Pump

Company: CNPC Ningxia branch
Device: 45/80 Fertilizer device
Product type: HTDB100-80-10 stg
Date of production: December 10, 2011
Capacity: 107 m³/h
Head: 3500m
Speed: 7500 r/min
Efficiency: 72%
NPSHr: 22m
Power: 1120 kW
Temperature: -20C°  ~ 60C°
Pressure: 26 MPa
Standard: API610 10th (BB5)


HDGB HP Carbamate pump

Carbamate pump is a energy saving & self balanced high temperature high pressure centrifugal pump designed according to API 610 std. The pump is of horizontal split design with BB5 barrel casing, instead of BB4 stage structure. It features with long life, high stability, easy maintenance, lower operation cost. It is well used for carbamate liquid delivery and other high pressure conditions.

HP BFW Pump

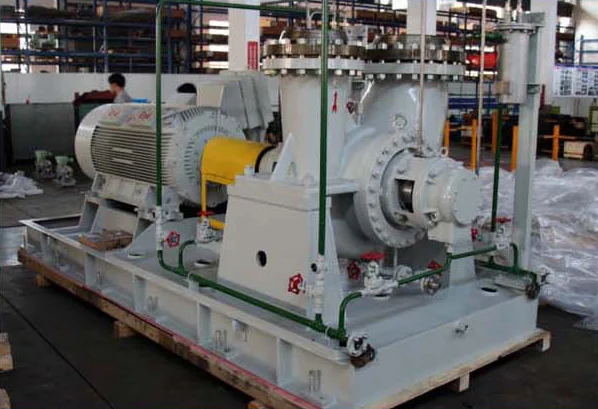

HTD Double-Casing High-temperature High-pressure Centrifugal Pump (BB5), designed according to API610 standard, is a kind of efficient energy-saver high-temperature high-pressure centrifugal pump. The pump is with structure of barrel type and axial split, and features the long life, good stability, easy maintenance and lower operation cost.HTD Double-Casing High- temperature High-pressure Centrifugal Pump is mainly used in the fields of the petroleum products refinery, the material feed of hydrogenation system during the petro-chemical process. It is ideal for pumping the high temperature, neutral or corrosive, and clean liquid.

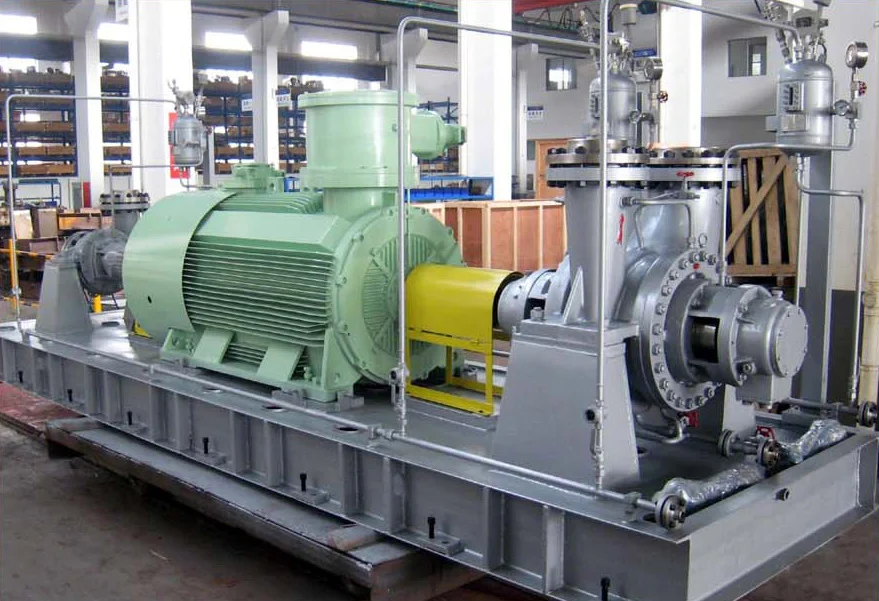

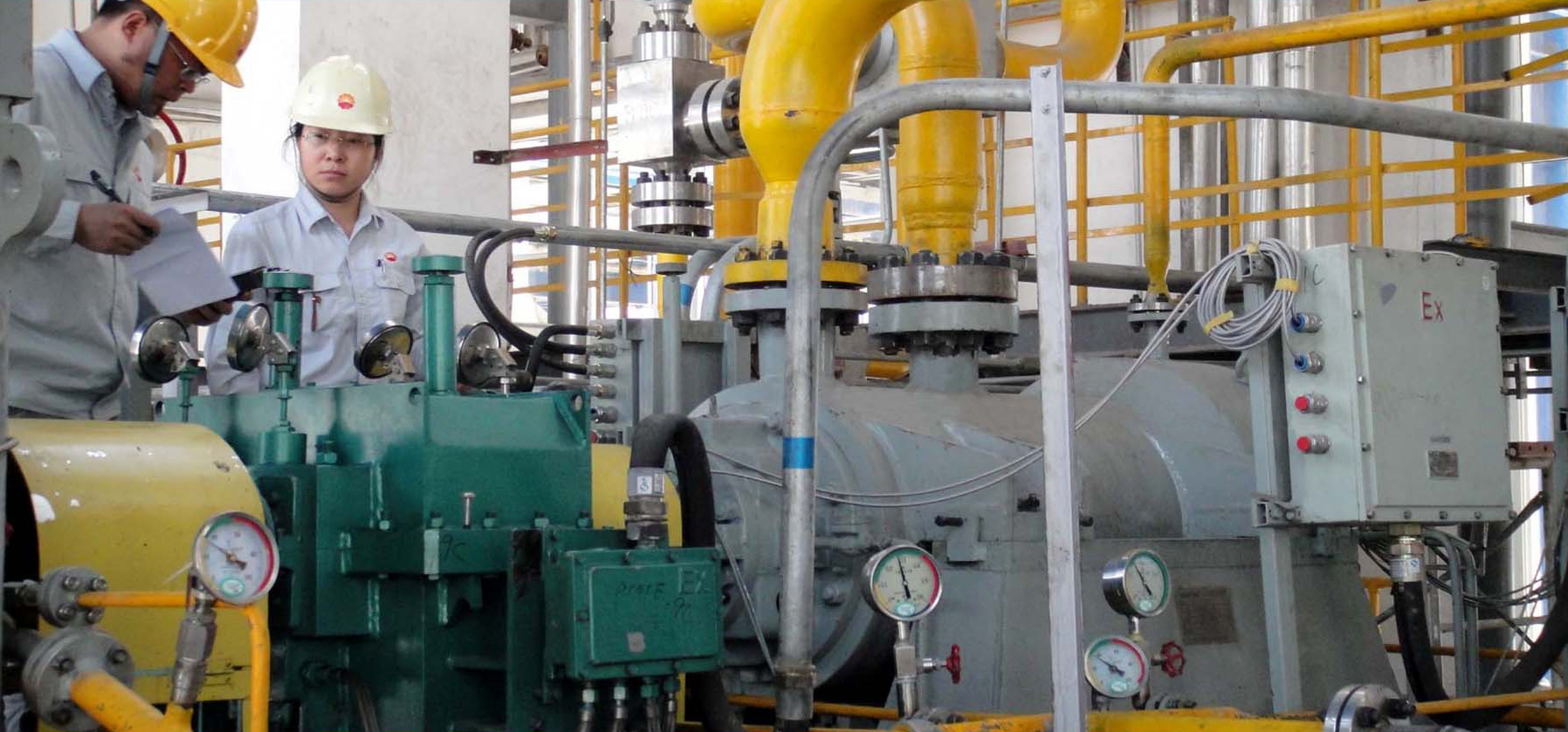

Pump unit driven by motor in operation
